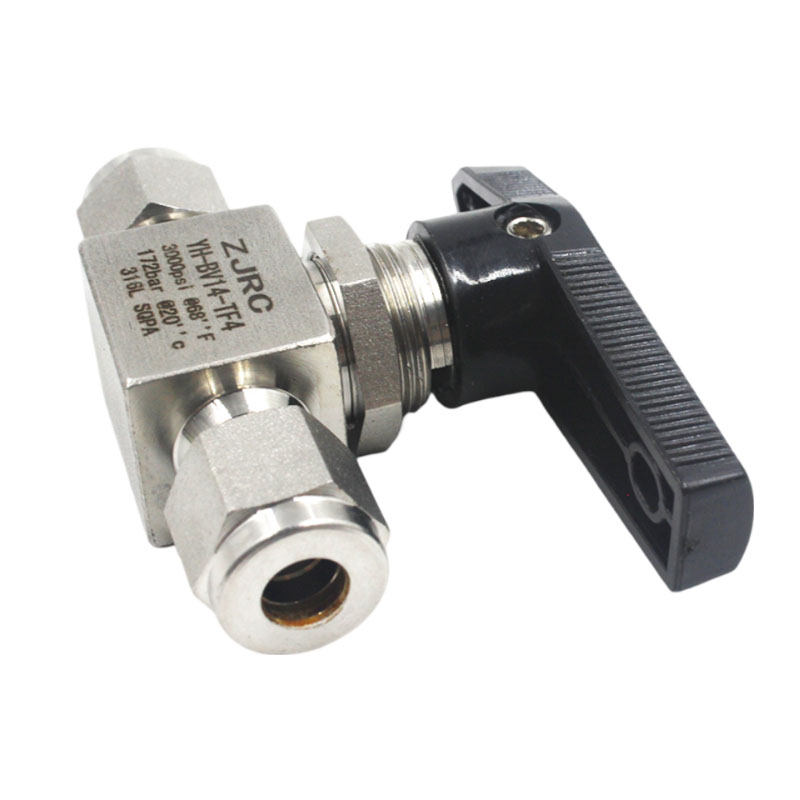

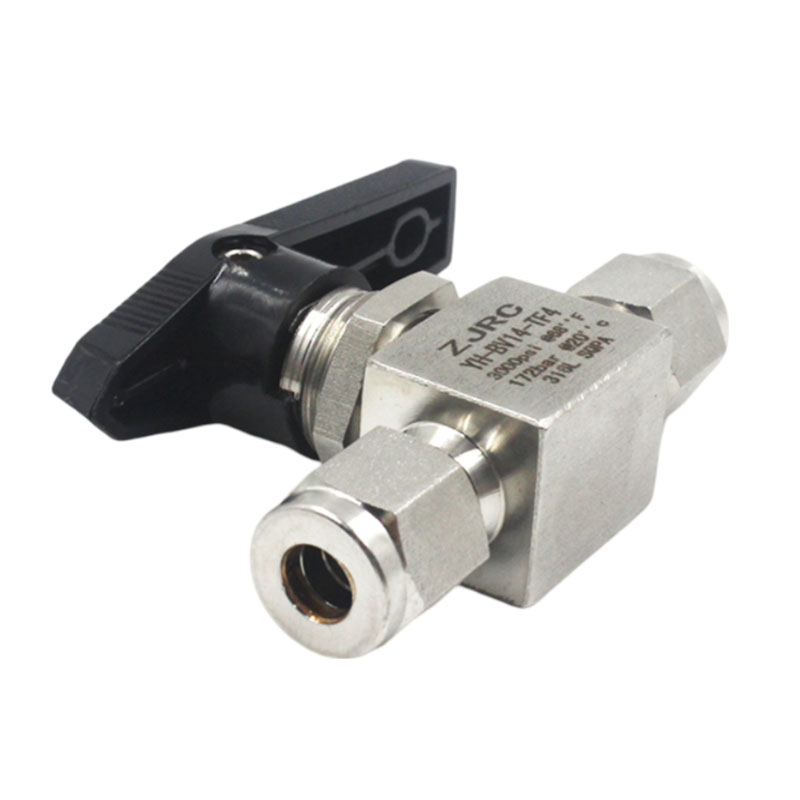

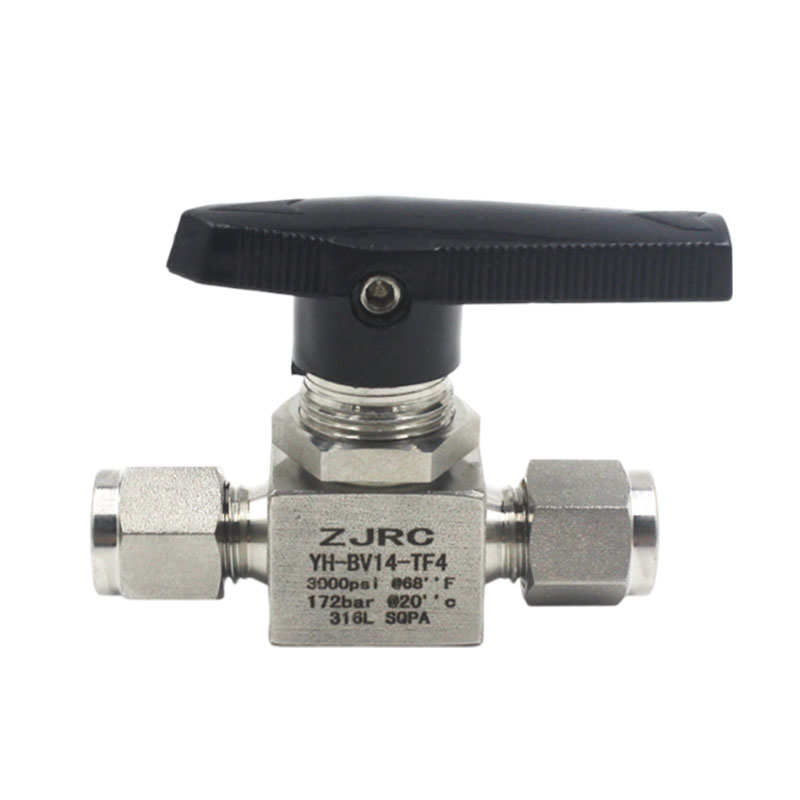

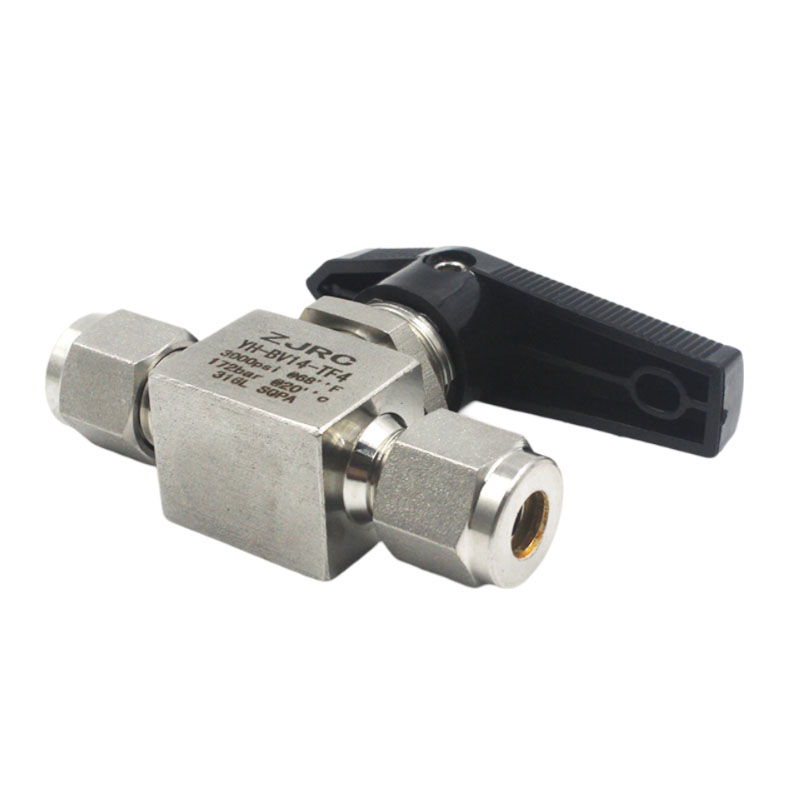

Imitation American Ball Valve

Φ3-Φ25
Advanced technology, uniform, no scratches, smooth surface, no convex spots, no abnormal corners, high-quality materials, smooth surface.
Material: 316, 316L, 304, copper and other materials are optional.
Size range: Φ3mm~25mm, Φ1/8 inch~Φ1 inch (3.175mm-25.4mm), 1/8""~1"" inch, M10~M24
Connection method: ferrule type, welding type, thread type are optional

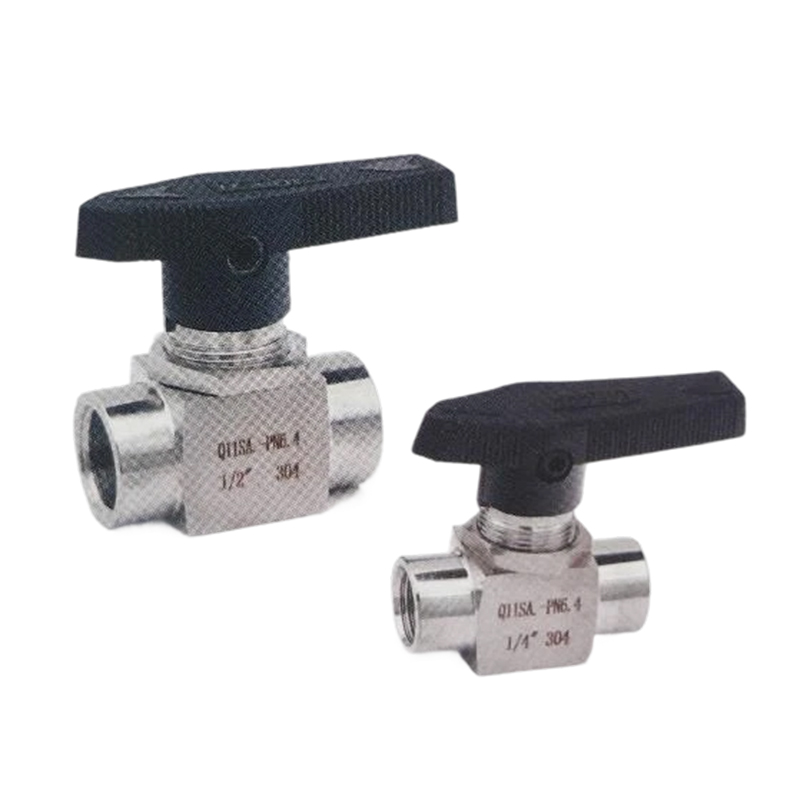

Thread type: ZG (R), NPT, G, M thread are optional
Application areas: energy-saving and environmental protection industry, automobile and shipbuilding industry, petrochemical industry, engineering and construction industry, food processing industry, pharmaceutical industry
Working pressure: about 930PSI (6.4MPa)
Working temperature: room temperature, up to about 70°C
Ball valve type: straight-through, right-angle, three-way, (panel installation is available)
